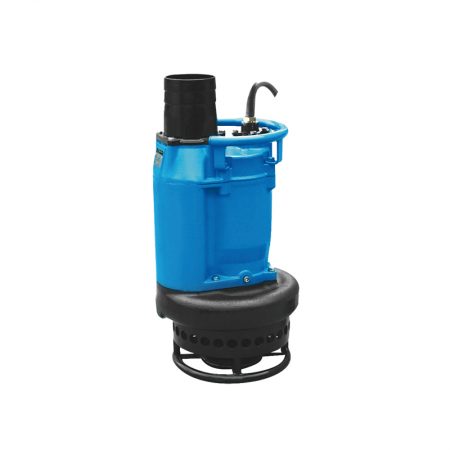

Submersible slurry pump with a 4-pole motor for an increased lifetime and greater convenience.

High chrome alloy impeller combined with agitator for pumping heavy slurry.

Slim design with a top discharge enabling installation in smaller casing.

For bentonite mixed water in foundation works or muddy water in civil engineering works.

Specification

• Capacity: up to 372 m³/h
• Head: up to 32 meters
• Discharge:80mm(3″) to 200mm(8″)
• Power:4 kW(5.5HP)to 22 kW(30HP)
• Power supply: three phase 380V+10%,50HZ; 380V+10%,60HZ
• Insulation class:F
• Protection class: IP68
• Cable length: 8m
• Water temperature: up to 40℃
• Max water depth:15m

Application

• Civil engineering
• Mines,quarries,coal ore & slurry
• Sewage treatment plants
• General pumping purposes
• Pumping fluid: sludge,liquids-containing, mud and bentonite

Special Features on Request

• Other voltages
• The length of cable is optional
